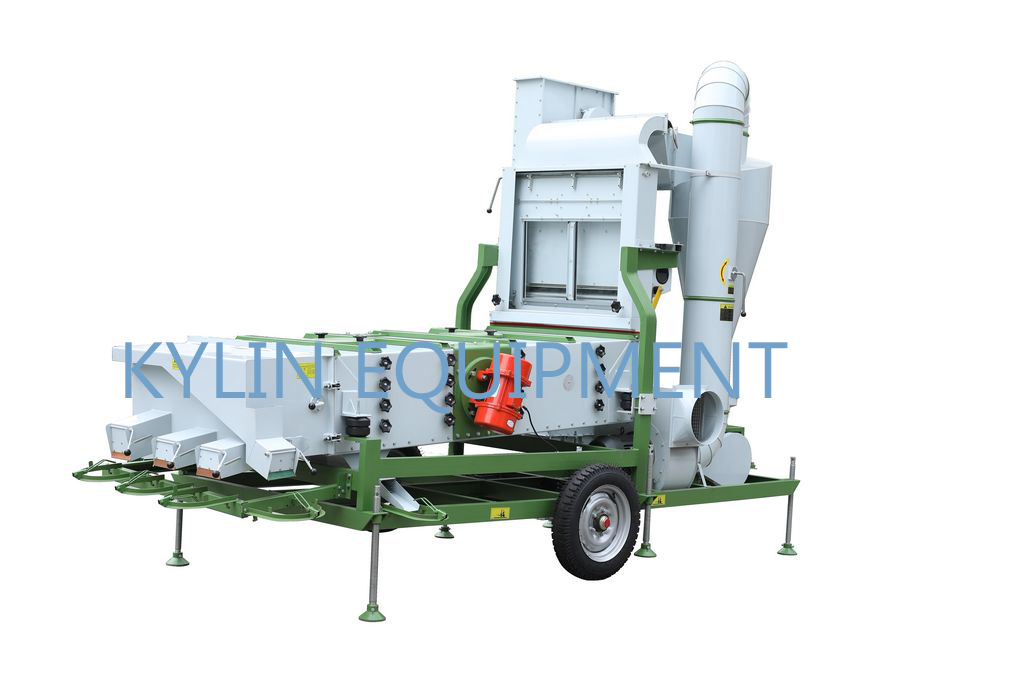

Air screen cleaner 5XFS series
- Vertical aspirator: complete Air System -Dust fan, cyclone and air-lock. To remove dust, chaffs. Easy to adjust the air volume.
- Vibrating graders: multi-layer screens. models with three, four or five layers. Can be used for removing big/small impurities or separating grains by size (grading).
- With wheels and can be pulled around in yard
- Very simple design and low maintenance needs
- Come with free screens
- For five layer model, it can be configured as double deck: a metal sheet replace the middle screen to separate the inside of grader two parallel channels. Each channel has three screens and grains run through both channels simultaneously. So the capacity is much higher.
| Name | Model | Layer | Sieve Surface Area (mm) | Capacity (T/H) | Power (kw) | Weight (T) | LxWxH (mm) |
| Air screen cleaner | 5XFS-7.5B | 3 | 1250 x 2400 | 7.5 | 8.5 | 1.82 | 5100 x 2050 x 3430 |
| 5XFS-7.5C | 4 | 1250 x 2400 | 7.5 | 8.5 | 1.86 | 5100 x 2050 x 3430 | |
| 5XFS-10B | 3 | 1500 × 2400 | 10 | 10.5 | 2.01 | 5100 x 2300 x 3600 | |
| 5XFS-10C | 4 | 1500 x 2400 | 10 | 10.5 | 2.06 | 5100 x 2300 x 3600 | |
| 5XFS-10D | 5 | 1500 x 2400 | 20 | 10.5 | 2.56 | 5100 x 2300 x 3600 | |
| Dual air screen cleaner | 5XFS-7.5BS | 3 | 1250 x 2400 | 7.5 | 8.5 | 1.85 | 5100 x 2050 x 3430 |
| 5XFS-7.5CS | 4 | 1250 x 2400 | 7.5 | 8.5 | 1.89 | 5100 x 2050 x 3430 | |
| 5XFS-10BS | 3 | 1500 × 2400 | 10 | 10.5 | 2.04 | 5100 x 2300 x 3600 | |
| 5XFS-10CS | 4 | 1500 x 2400 | 10 | 10.5 | 2.09 | 5100 x 2300 x 3600 |
