Parts

We supply parts for grain cleaning and grain handling equipment.

Rubber shaker ball

  • Preventing grain cleaner screens get plugged
  • Durable
  • Good cold weather rebound
  • 25mm, 30mm. Other sizes can be customized.

Screen

  • For grain cleaners
  • Round or slot holes
  • hole sizes can be customized

V-belt

  • High quality
  • Durable
  • Various sizes

Cutting disc

  • For metal cut off
  • High performance
  • Durable
  • $1/ea or $40/box of 50 discs

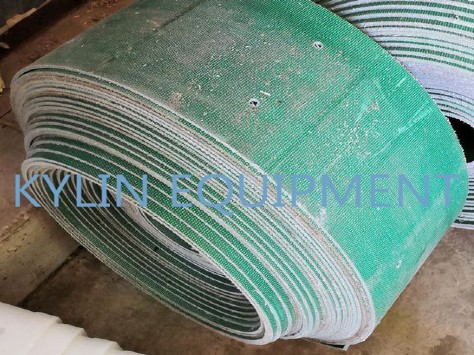

Bucket elevator belt

  • PVC
  • Minimal stretch
  • Pre-punched

Bucket elevator bucket

  • Plastic
  • Various sizes

Flux core welding wire

  • Gasless flux cored welding wire E71T-GS
  • 0.8mm (.030″), 5kg spool
  • Smooth arc action, high feedability, easy to weld
  • Low spatter, good bead appearance
  • $45/spool

Flux core welding wire

Flap disc

  • Diameter: 5”
  • Arbor: 7/8”
  • Girt: 60 and 80
  • Thicker and durable

Price is $2.5/ea or $50/pack of 25 discs.

Flap disc

Rotary full bin sensor/level sensor

A rotary level switch is based on a low torque, slow speed motor (about 1 RPM). The motor rotates a paddle which senses the presence of material at the level of the unit. As a high-level indicator, the paddle will rotate constantly until interrupted by material stalling its motion. As a low-level indicator, the paddle will begin to rotate as soon as the material has dropped below the desired level.
There’re two switches in it. One is normally open the other is normally close. They change their open/close status when the paddle stops. You can use the switches to control circuits: start or stop a motor, turn on alarm and etc.

  • This is 110V AC. We can order 220V AC, 24V DC models.
  • Power: 4W
  • With stainless steel paddle
  • good cold weather performance
  • IP65
  • Stop force adjustable
  • Size is in mm.
  • New.

We installed full bin alarm for our grain bins with this level sensor two years ago. They are reliable in the coldest weather. Easy to use. Please see the pic for reference.
Price is $75/ea.

Located in Saskatoon. Willing to ship.

Full bin sensor

Proximity switch Approach switch

A proximity switch is used to detect the distance between the switch and materials like grain, metal, plastic, wood, water and etc. It is widely used in the automatic control industry for detecting, controlling, and noncontact switching. The switch is normally open and will close when an object comes close to one end of the switch (the end without wire). This switch cannot be used to measure the distance.

  • Capacitive proximity sensor
  • Max detection distance: 10 mm, adjustable
  • Normally open
  • Two-wire cable, 6ft long
  • Operating Voltage: 95-250 V AC
  • Output Current: max. 300mA
  • 3 inch long, 1 inch in diameter
  • With 2 lock nuts
  • New

It could be used as a full bin sensor or as a sensor at the top of an auger. Please see the attached drawing for the typical wring.

The price is $15/ea. We have a few of them in Saskatoon. Can ship with extra mailing cost.

Proximity switch
